| Model No. | UST-NTR6HD-500AP-D |
|---|---|
| lmage Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.001Lux,B/W:0.001Lux,0 Lux with IR(Starlight illumination) |
| 3D NDR | Support |
| WDR | Support |
| Electronic Shutte | AUTO |
| Day Night Mode | AUTO ICR Color to B/W |
| Fixed lens | 4mm/F1.0 |
| Zoom cam Focal Length | 20X Optical zoom,4.7~94mm |
| Zoom Speed | Approx.4s(Optical Wide~Tele) |
| Field of view | 70° |
| PTZ Angle of View | 52-2.9°(Wide-Tele) |
| Resolution | 2560(H)x2048(V) |
| Main Stream | 2592*1944@25fps2500*1600@25fps,2048×1536@25 fps |
| Sub Stream | D1@30fps |
| Video Compression | H.265+/H.265/.H.264 |
| Network protocol | HTTP,TCP/IPIPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP |
| Interface protocol | ONVIF |
| APP | AC18Pro, Video-link |
| Warm Light Distance | 100M(Color night vision) |
| Horizontal Range | 0°~ 360° continuously |
| Vertical Range | -5°~90° |
| Horizontal Speed | 0.05°~240/s |
| Max Speed | 240/S |
| Preset | 256 |
| Patrol scan | Support |
| L/R Scan | 1pc |
| Horizontal Scan | 1pc |
| Power-off memory | Support |
| PARK Action | Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
| Watch position | Support |
| Power | DC12V/5A |
| Consumption | <35W |
| Mounting | Wall mounting or lifting |
| work environment | temperature:-20~60℃;humidity<90% |
| Protection level | IP66 waterproof6000V lightning protection |

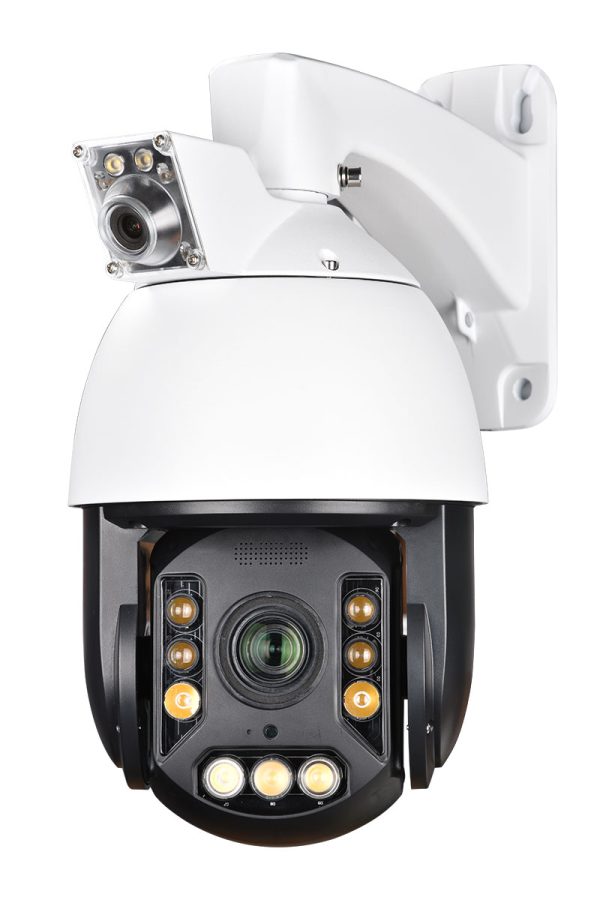

5MP Dual lens AI Smart Linkage IP Camera
1. Humanoid recognition intrusion detection based on AI intelligent analysis.
2. Warning line, warning area linkage triggered with auto tracking and zooming.
3. Static camera lens for guard position monitoring, 20X zoom PTZ camera lens auto zooms in to show clear target with humanoid detection, 24/7 monitoring for important area with more details.
4. Smart linkage auto tracking feature
5. Precise motor driver, professional grade subdivision circuit, support high precision and smooth motion positioning
6. IP66 waterproof for outdoor use
7. Built-in POE
